The K9 Roof Rack System from Eezi-Awn is a revolutionary advancement in expedition-style racks; it is thinner, lighter, stronger, quieter, more functional, more aerodynamic, more durable, and more aesthetically complimentary to your vehicle than the competition.
Sizes

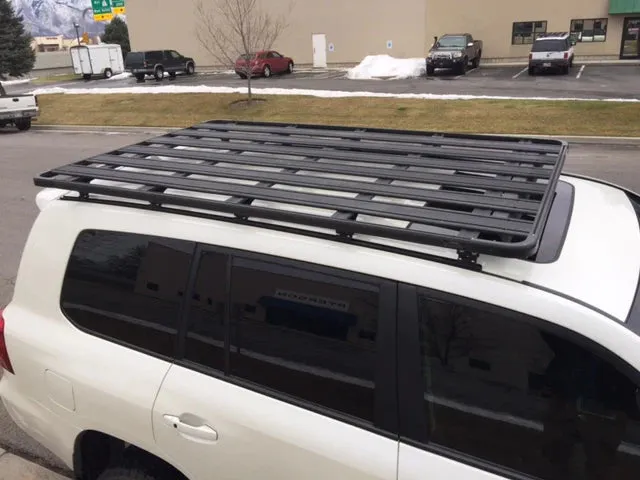

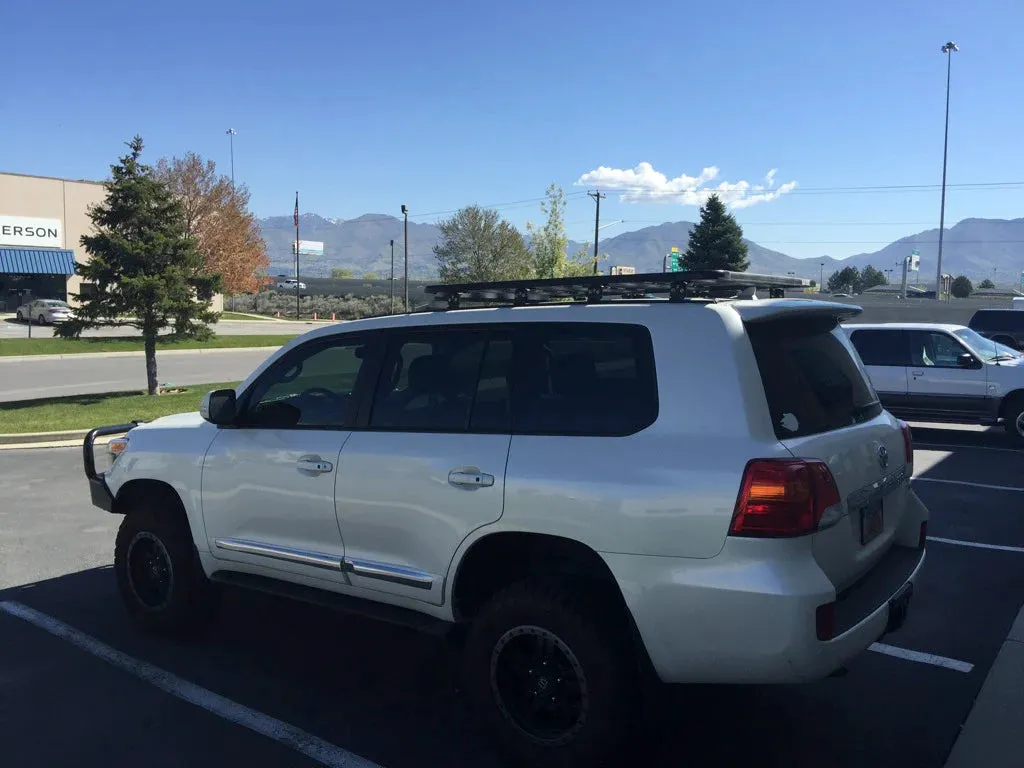

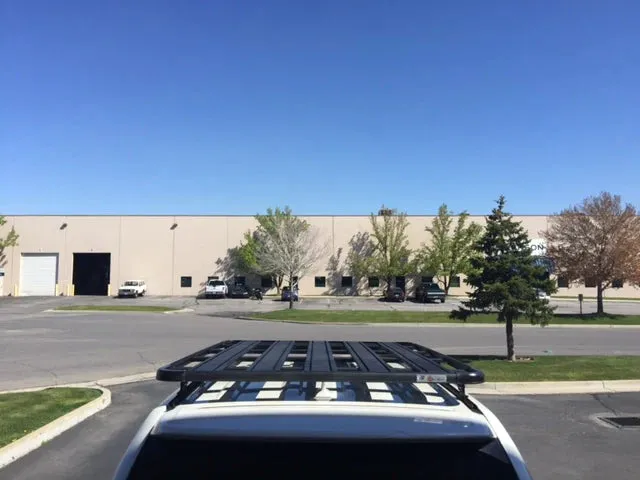

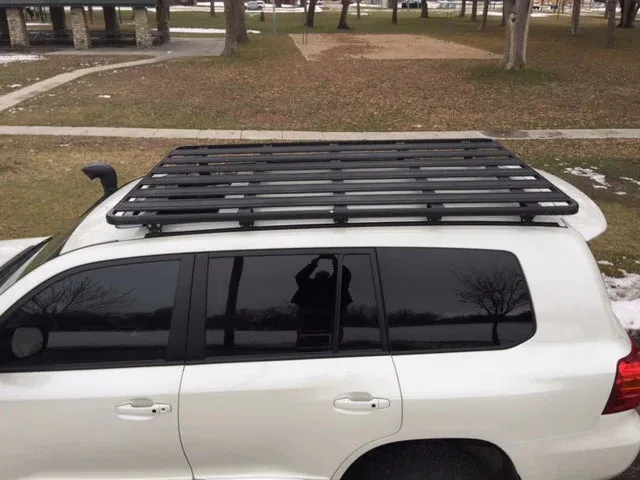

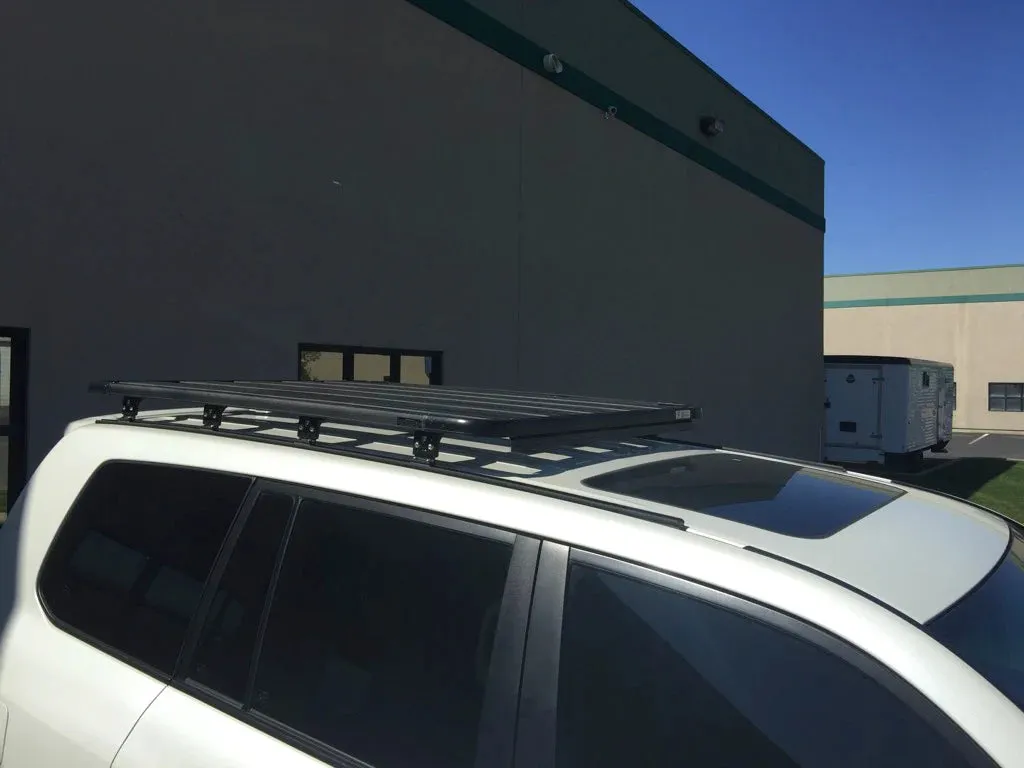

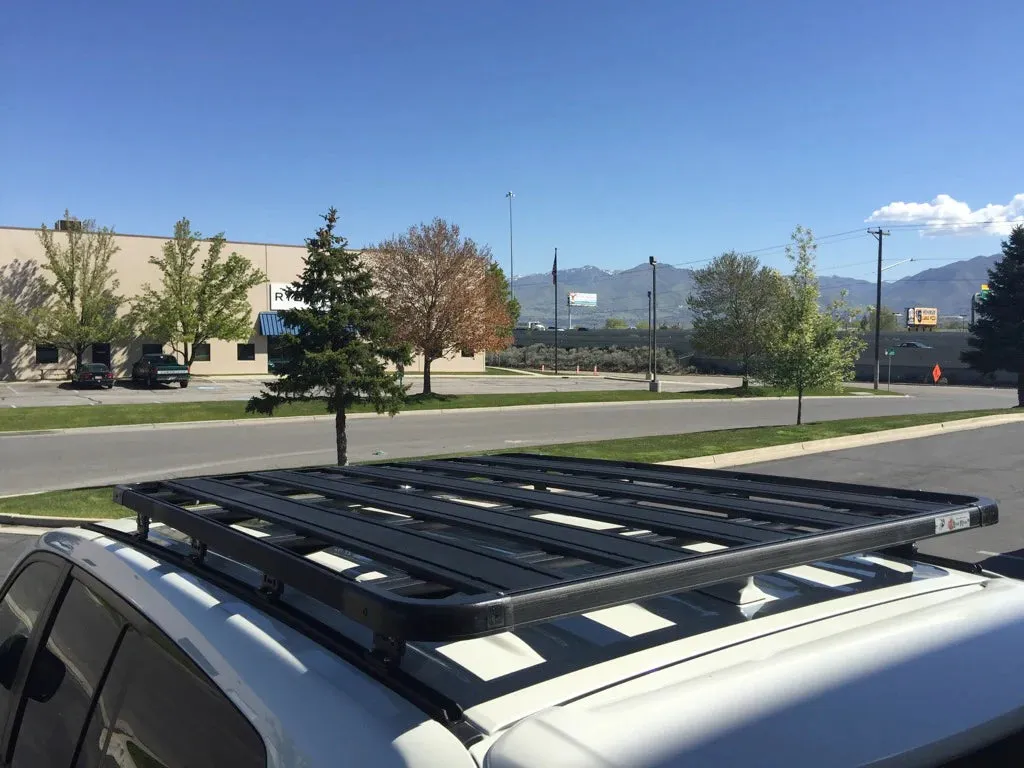

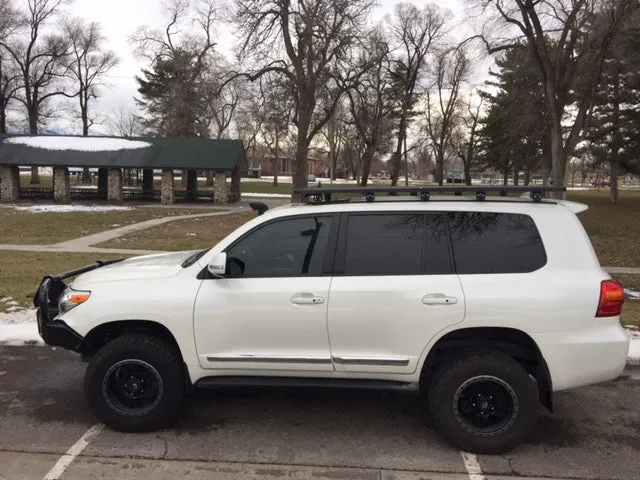

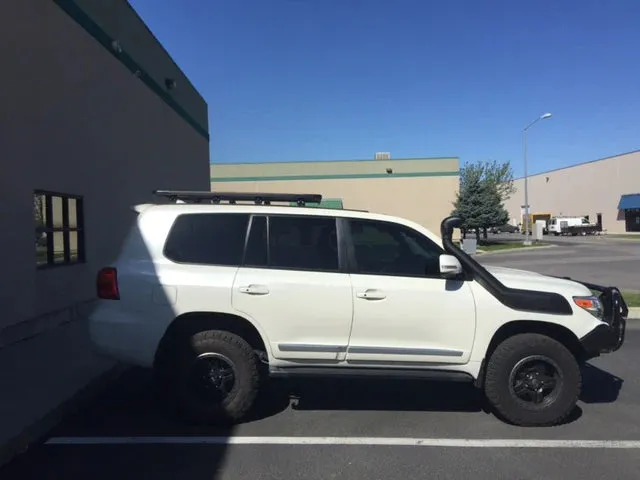

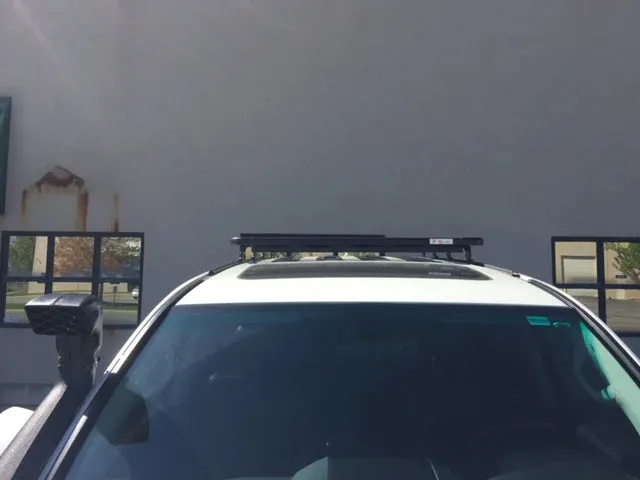

The K9 systems for the Toyota 200 Series Land Cruiser comes in both the 1250mm (49"), and 1400mm (55") widths, with 5 different lengths. Far and away the most popular model is the 2.2M (87") long rack that starts a few inches behind the windshield and finishes an inch in front of the rear hatch. This rack maximizes your roof top capacity. The 1.6M (62") version is a great choice if you want to maintain the use of your sunroof. It starts just behind the sunroof and finishes an inch in front of the rear hatch.
Heights
The 200 Series Toyota Land Cruiser rack uses their standard height rack which measures 5" high, from above the second row doors, measured at the pinch weld trim. It uses 65mm tall feet, and allows enough room for options on the bottom of the platform.
Capacity
Capacity of the K9 roof rack system is broken into two measurements, static weight and dynamic weight. Static is when the vehicle is stationary. Dynamic is when the vehicle is in motion. A dynamic capacity in the range of 500 pounds is possible. That load included a RTT, awning, dual fuel can holder, aluminum storage case with recovery gear, shovel, axe, under mount table, light bar, etc on a 2.2M long rack. A static capacity of 1000 pounds is possible. An example of static load increase would be adding people in the tent on the roof. Please understand these capacities are on vehicles that have modified suspensions designed to manage this amount of weight. They are not a warrantied or guaranteed capacity. Your load capacity will vary.
No Drilling

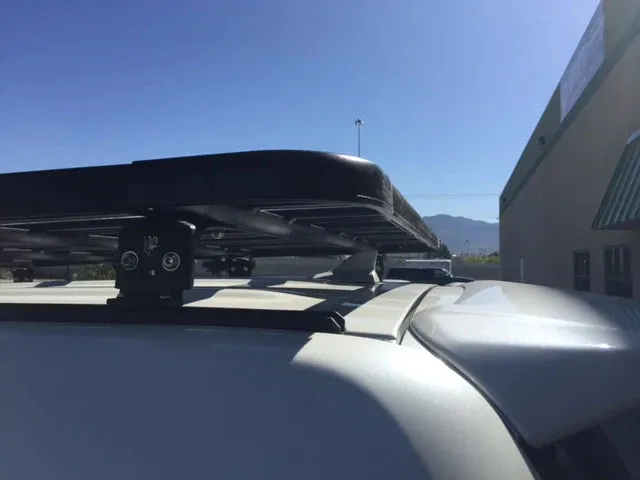

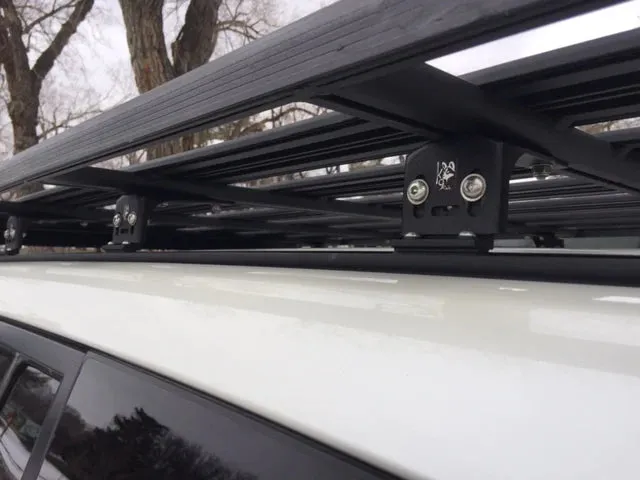

The K9 Roof Rack System for the 200 Series Toyota Land Cruiser requires no drilling at all for any size rack. Our proprietary mounting rail mounts right over the roof pinch weld trim and utilizes the OEM roof rack mounting points.
Installation
Installation of this rack system can be done by one person in approximately 1-1/2 hours. Help lifting the platform on the roof would be appreciated. You start by removing the factory roof rack, then attach the K9 mounting rail to the roof, followed by a full set of feet, and finally a platform on top. Please see our Roof Rack Installation 101 video for more in depth explanation. Written instructions are also provided with each rack system. .
System Components

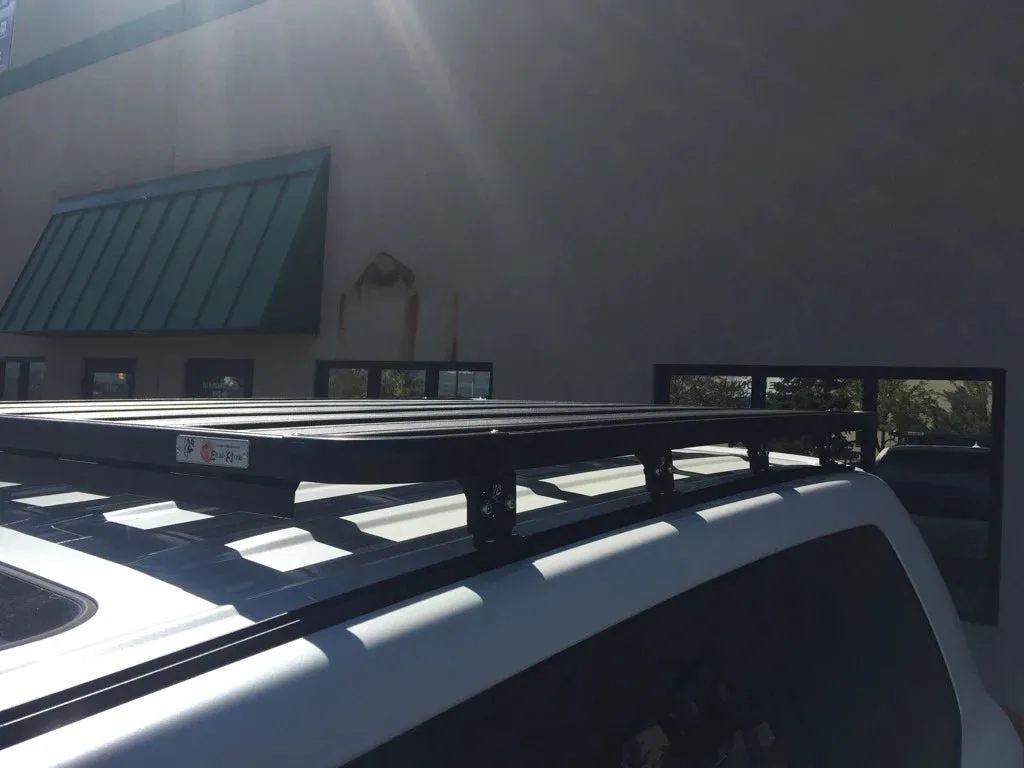

The components used on the 200 Series Toyota Land Cruiser rack systems include a pair of mounting rail, a set of K9 feet (2 per platform cross brace), and a platform.
System Accessories

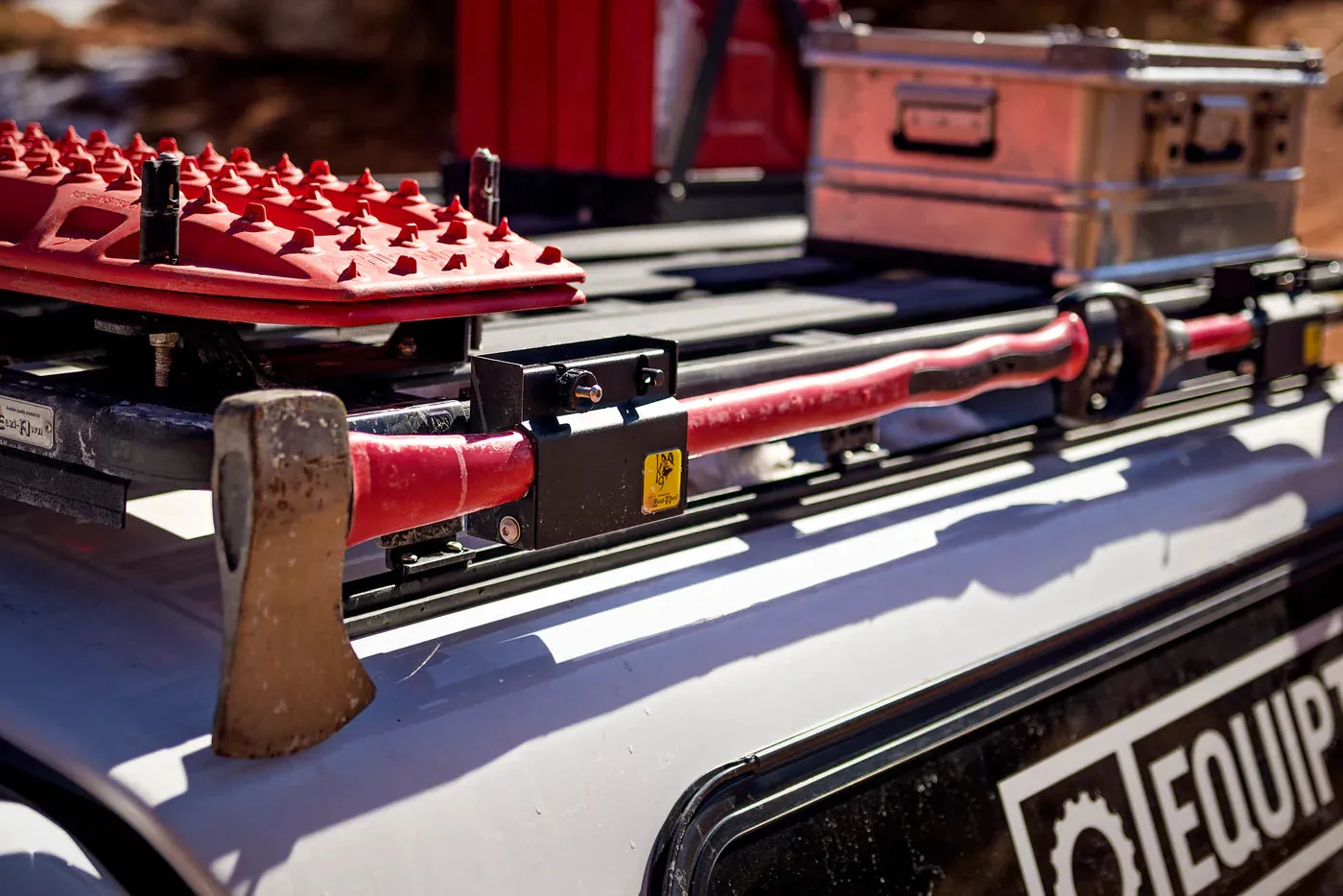

The Eezi-Awn K9 Roof Rack System comes with a complete array of bolt on accessories. Jerry Can holders, Axe mounts, Shovel mounts, Hi-Lift Mounts, Max Trax Mounts, Awning Mounts, Under Rack Table mounts, and much more.
Thule & Yakima CompatibleThe K9 Roof Rack is also the only overlanding rack on the market that is easily compatible with your existing Thule or Yakima sports bar mounts for bikes, kayaks, etc. With store-accessible 6mm hardware that attaches to the K9's perimeter, your hobbies won't become obsolete with your "old gear."
K9 Roof Rack Features

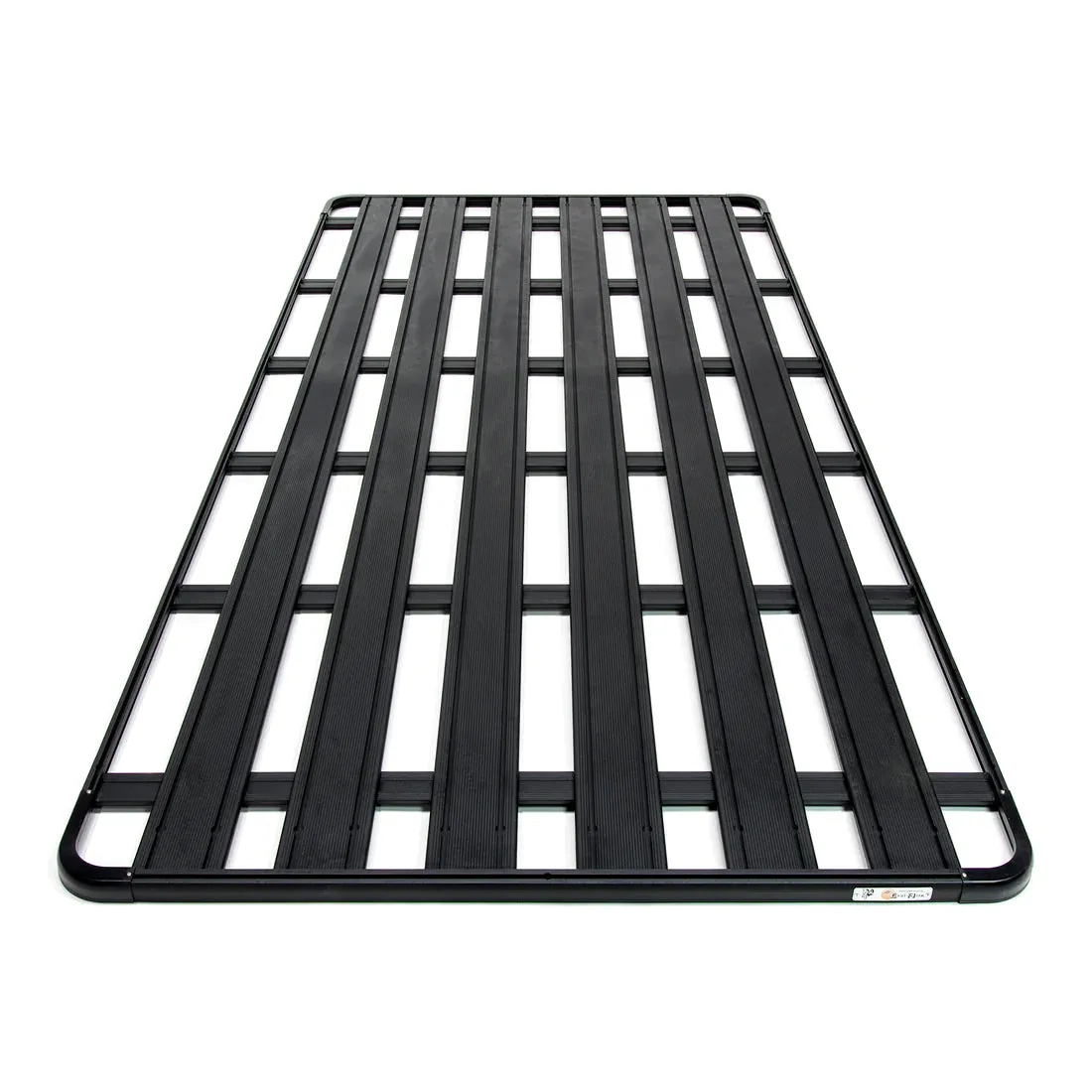

- Fully Welded 1-3/8"H Low-Profile Platform
- Light Weight All Aluminum Construction
- All Components Are Anodized And Powder Coated Matte Black
- 5-1/8" Wide M8 T-Slot Slats, Running Front to Back
- Semi-Elliptical Bottom Cross Braces To Reduce Wind Noise
- M6 T-Slot Around Top Perimeter With Rounded Top Edge
- 5 Lengths and 3 Widths Of Platform Available
- Multiple Mounting Configurations Including Gutterless/Gutter/OEM Rack Mounts
- Full Compliment of K9 Roof Rack Accessories For Top/Bottom/Side Mount
- Infinite Gear Organization Configurations
- Includes All Installation Components & Hardware
Feet vs Legs
- 40mm (2.5") height range 55-65mm (2.25" - 2.5")
- 65mm (3.25") height range 75-90mm (3" - 3.5")
- 90mm (4") height range 95-115mm (3.75" - 4.5")
The K9 Roof Rack Legs are all measured from the bottom of the leg that sits in the gutter, vertically to the top of the leg where the platform attaches. Each size has 15mm, or a little over 0.5" of height range upward from the listed height.
- 150mm (6") height range 150-165mm (6" - 6.5")
- 170mm (6.75") height range 170-185mm (6.75" - 7.25")
- 190mm (7.5") height range 190-205mm (7.5" - 8")
- 210mm (8.25") height range 210-225mm (8.25" - 8.75")
- 230mm (9") height range 230-245mm (9" - 9.5")
- 250mm (9.75") height range 250-265mm (9.75" - 10.25")
- 300mm (11.75") height range 300-315mm (11.75" - 12.25")
