The K9 Roof Rack System from Eezi-Awn is a revolutionary advancement in expedition-style racks; it is thinner, lighter, stronger, quieter, more functional, more aerodynamic, more durable, and more aesthetically complimentary to your vehicle than the competition.

Sizes

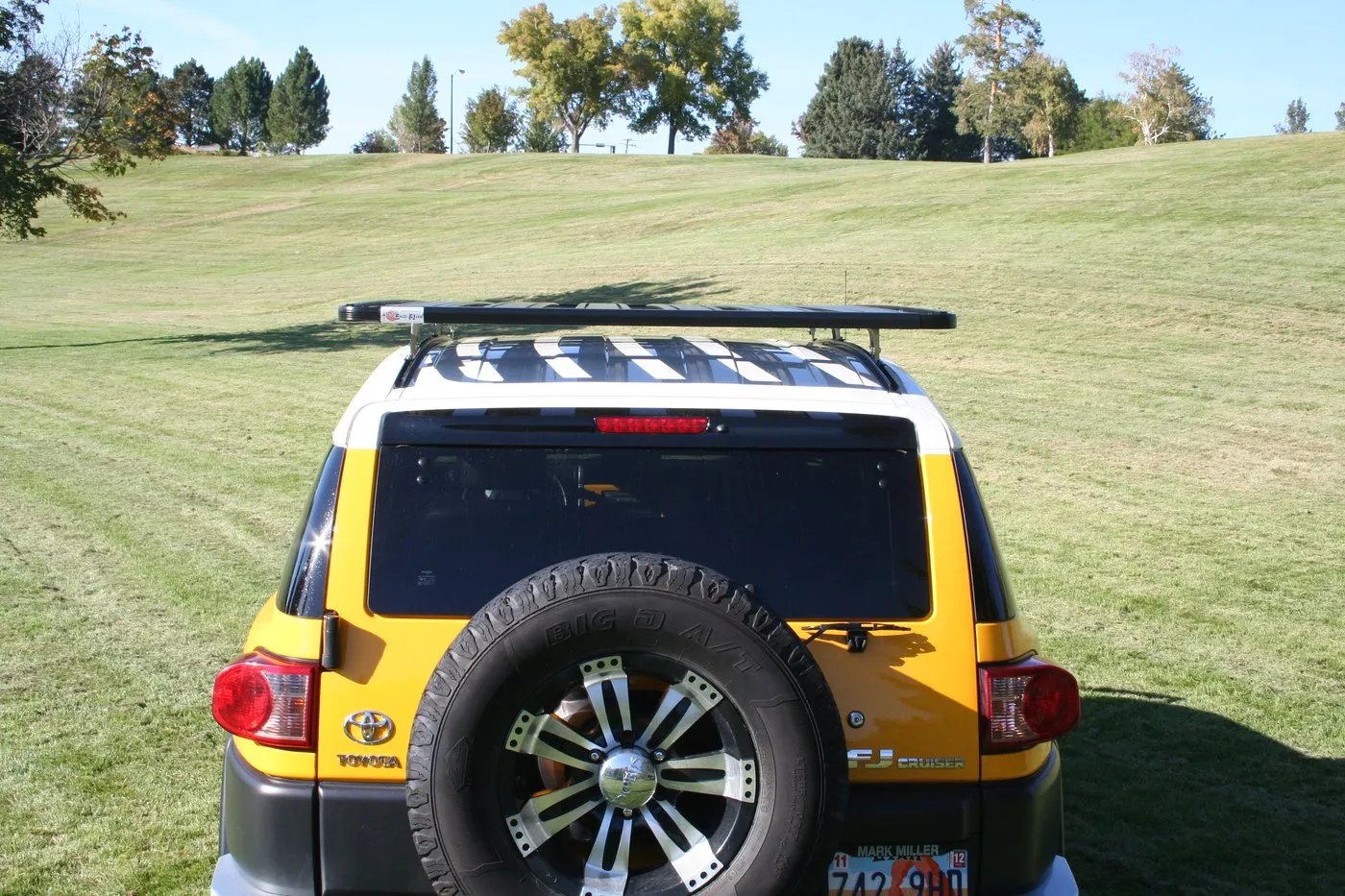

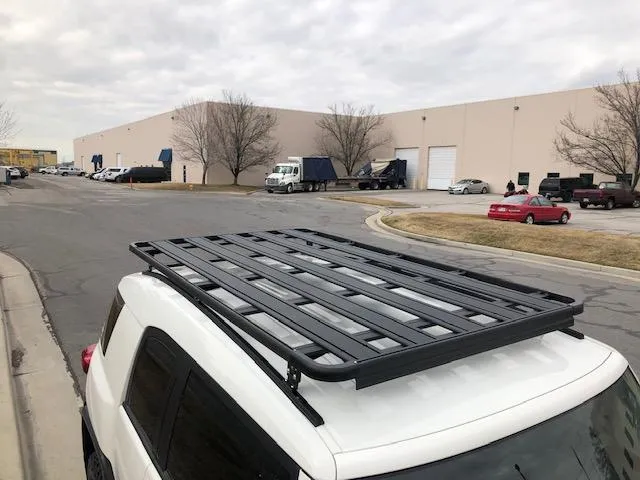

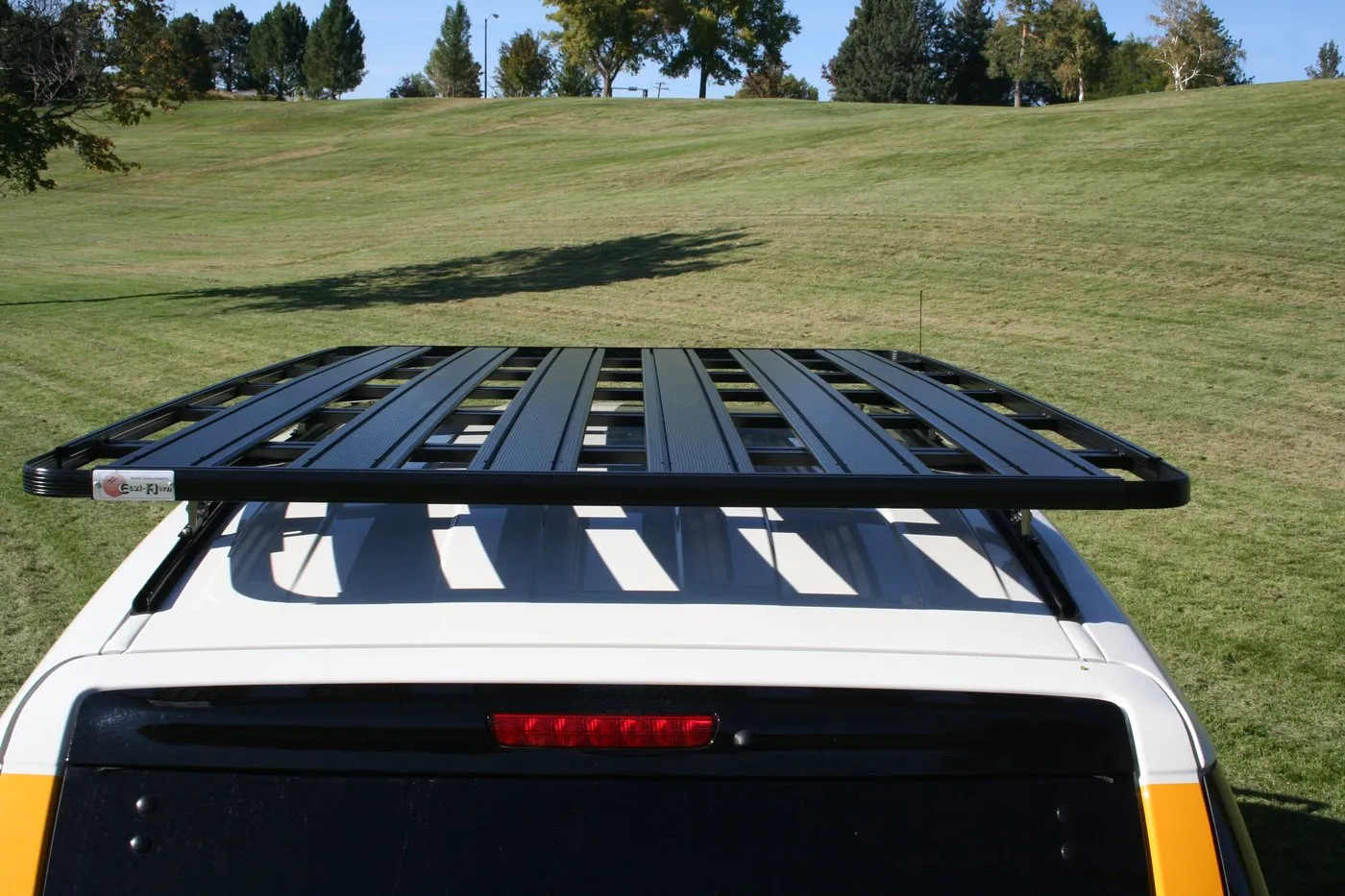

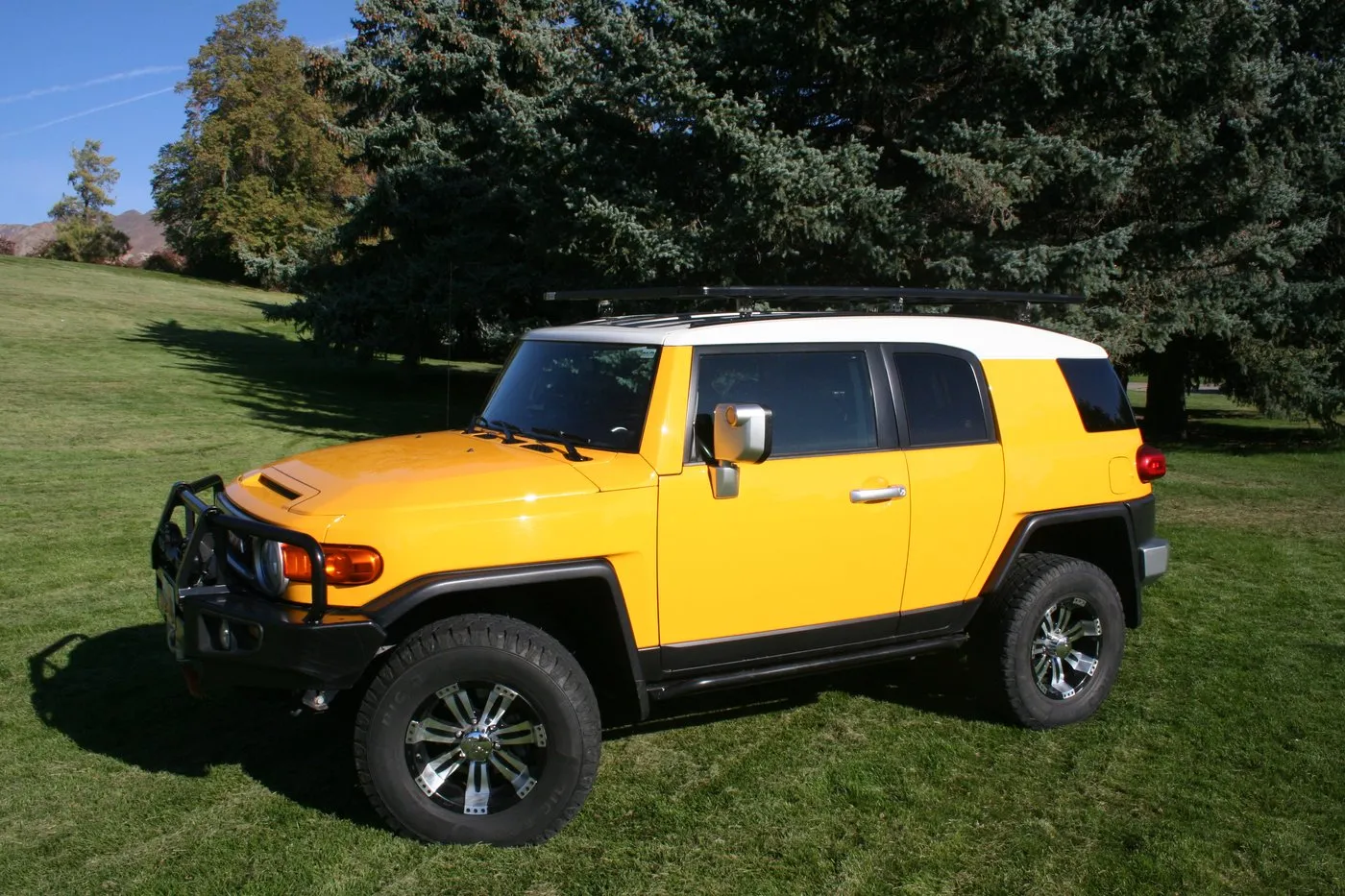

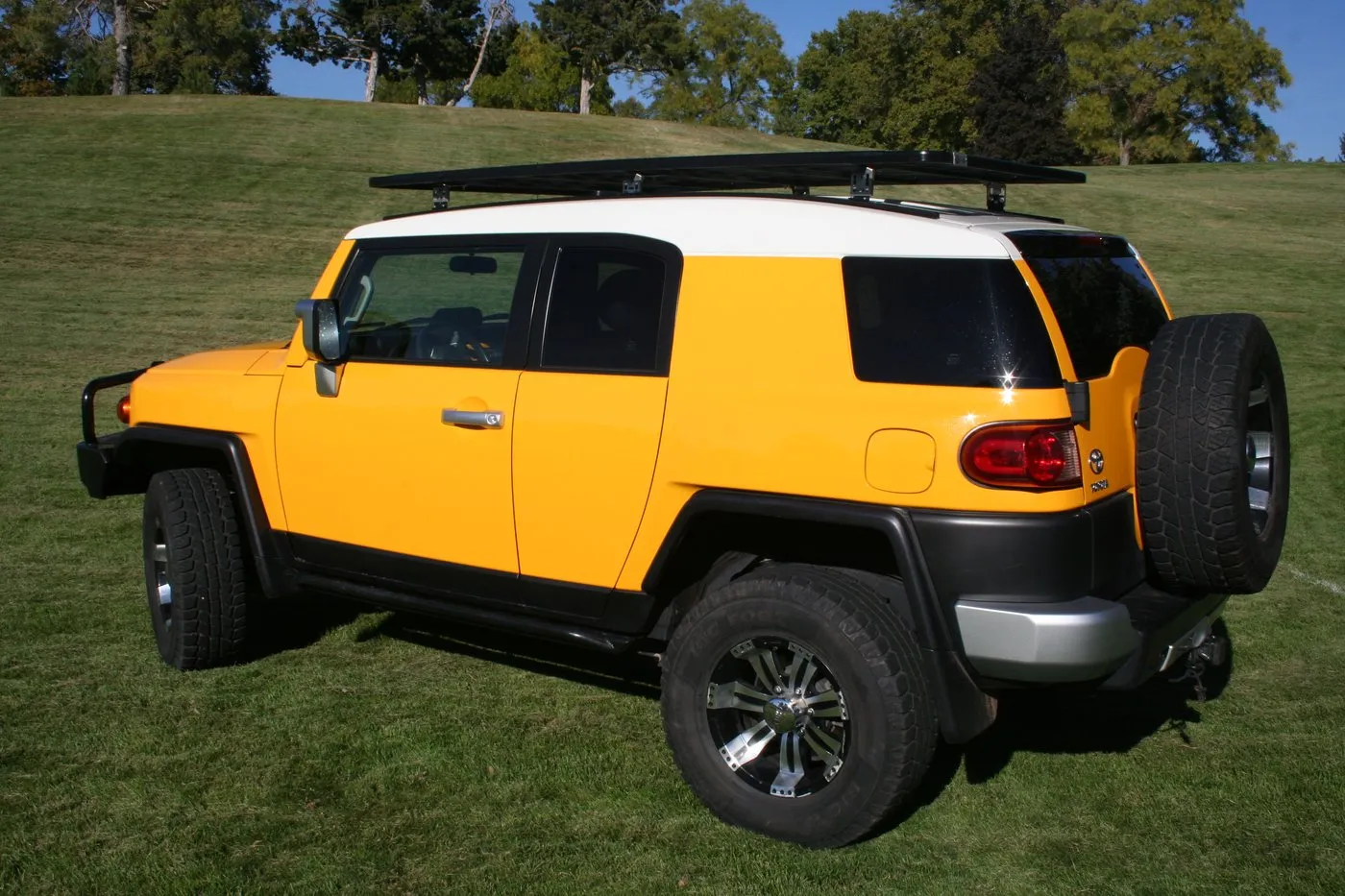

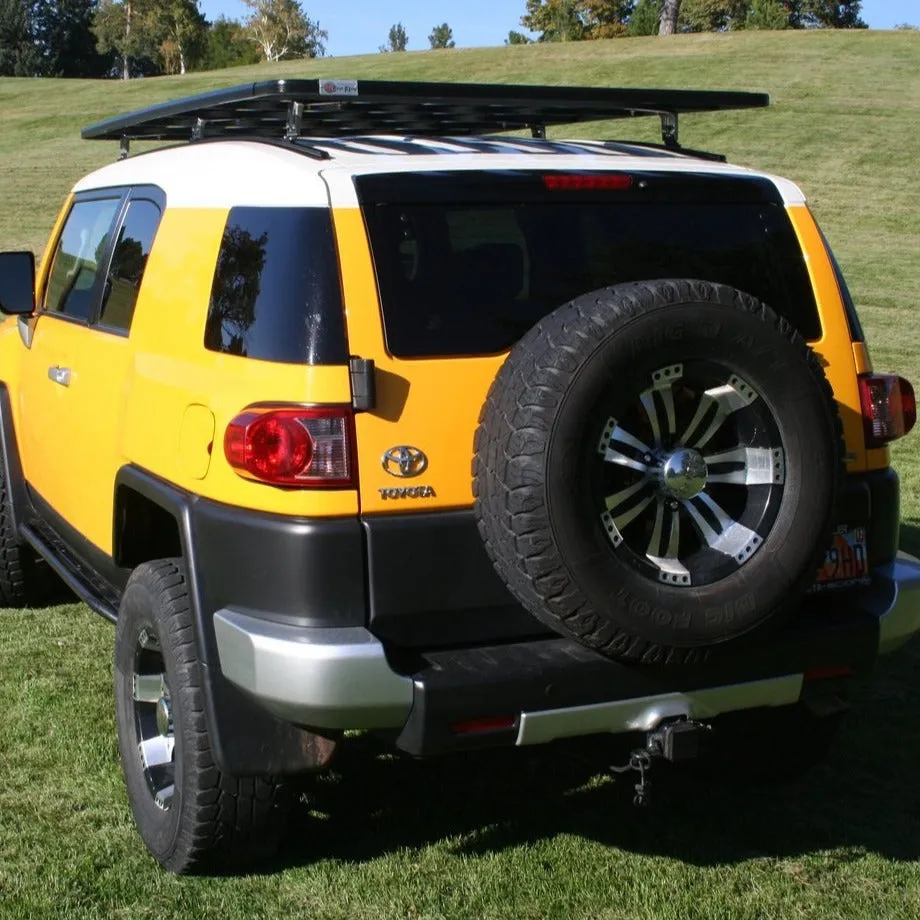

The K9 systems for the Toyota FJ Cruiser come in two widths: 1400mm (55") and 1250mm (49"), and 5 different lengths. Far and away the most popular model is the 2.2M (87") long rack that starts a few inches behind the windshield and finishes an inch in front of the rear hatch. This rack maximizes your roof top capacity.

Heights

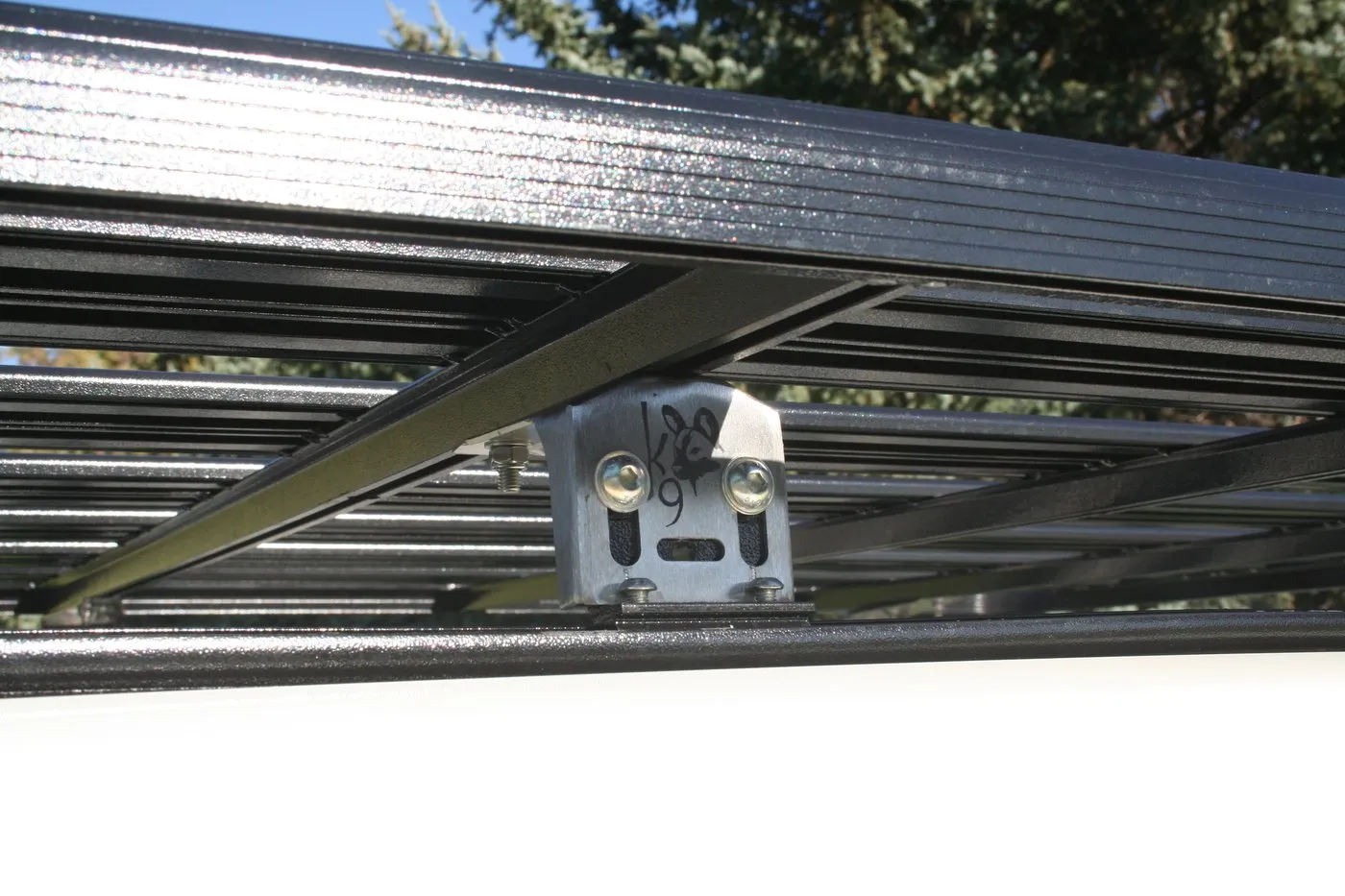

The FJ Cruiser is unique in how egg shaped the roof is. Because of this very odd shape, they use 3 different sized feet to mount a flat platform on an egg shaped roof.  They have two medium 65mm feet at the front, two small 40mm feet in the middle, and two large 90mm feet at the back.  They do not put feet on the second and fourth cross braces on the 1.8M, 2M, and 2.2M length racks.

Capacity

Capacity of the K9 roof rack system is broken into two measurements, static weight and dynamic weight.  Static is when the vehicle is stationary.  Dynamic is when the vehicle is in motion.  A dynamic capacity in the range of 500 pounds is possible.  That load included a RTT, awning, dual fuel can holder, aluminum storage case with recovery gear, shovel, axe, under mount table, light bar, etc on a 2.2M long rack.  A static capacity of 1000 pounds is possible.  An example of static load increase would be adding people in the tent on the roof.  Please understand these capacities are on vehicles that have modified suspensions designed to manage this amount of weight.  They are not a warrantied or guaranteed capacity.  Your load capacity will vary.

No Drilling

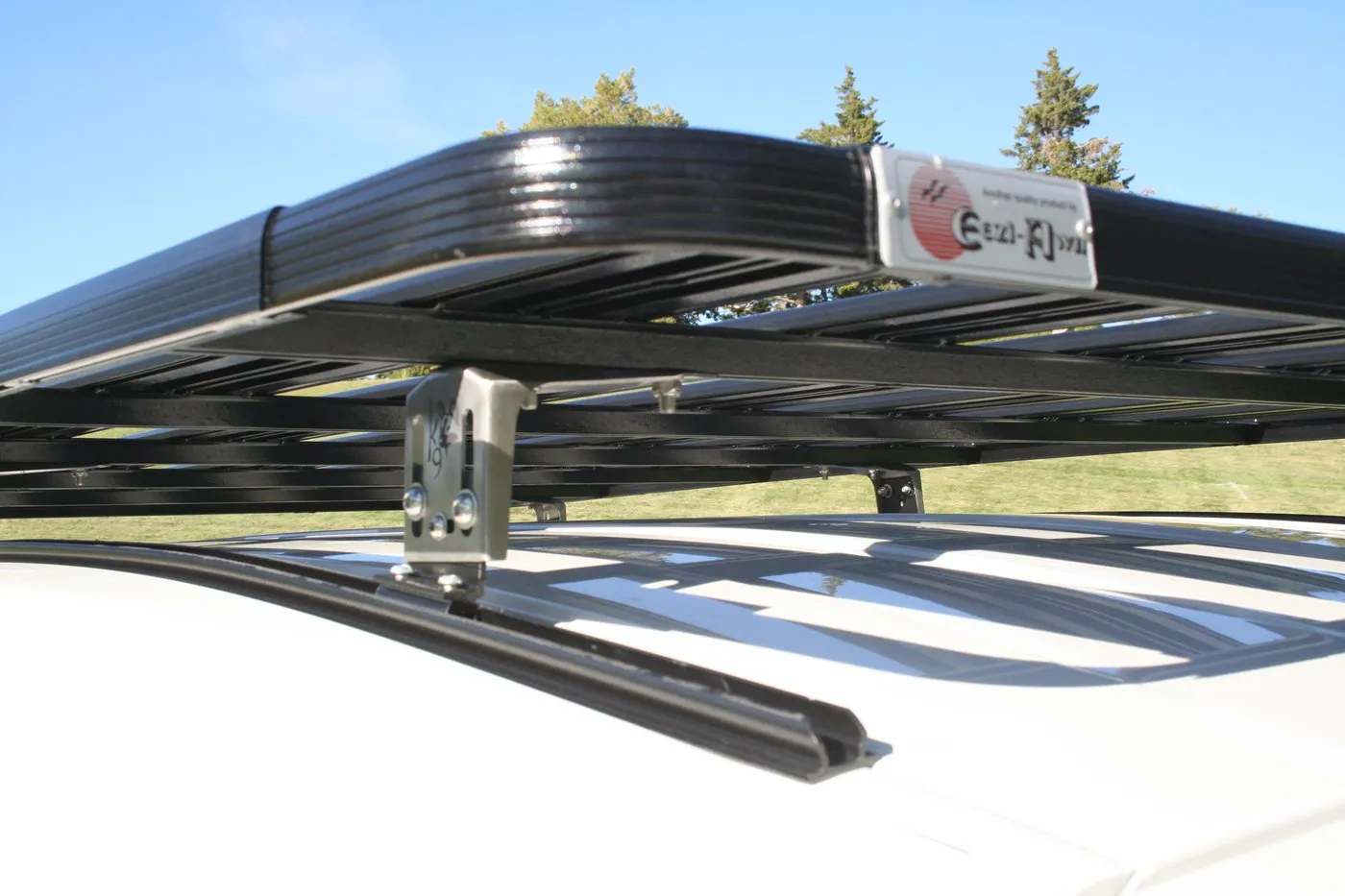

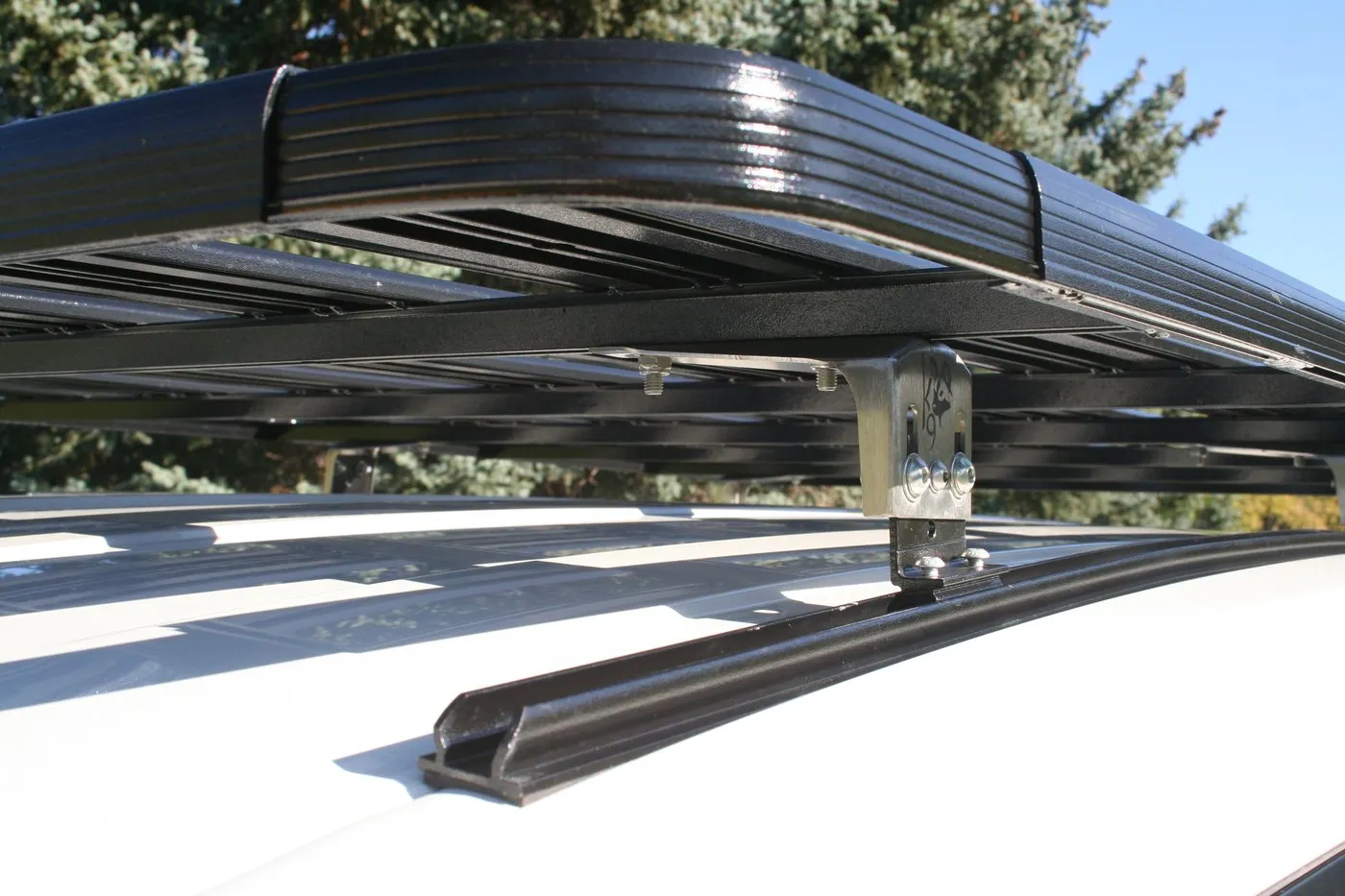

The K9 Roof Rack System for the FJ Cruiser requires no drilling at all for any size rack.  Our proprietary mounting rail mounts right over the roof pinch weld trim and utilizes the OEM roof rack mounting points.

Installation

Installation of this rack system can be done by one person in approximately 1-1/2 hours.  Help lifting the platform on the roof would be appreciated.  You start by removing the factory roof rack, then attach the K9 mounting rail to the roof, followed by a full set of feet, and finally a platform on top.  Please see our Roof Rack Installation 101 video for more in depth explanation.  Written instructions are also provided with each rack system. .

System Components

The components used on the FJ Cruiser rack systems include a pair of mounting rail, six K9 feet (2 of each size for front, middle, and rear cross braces), and a platform.

System Accessories

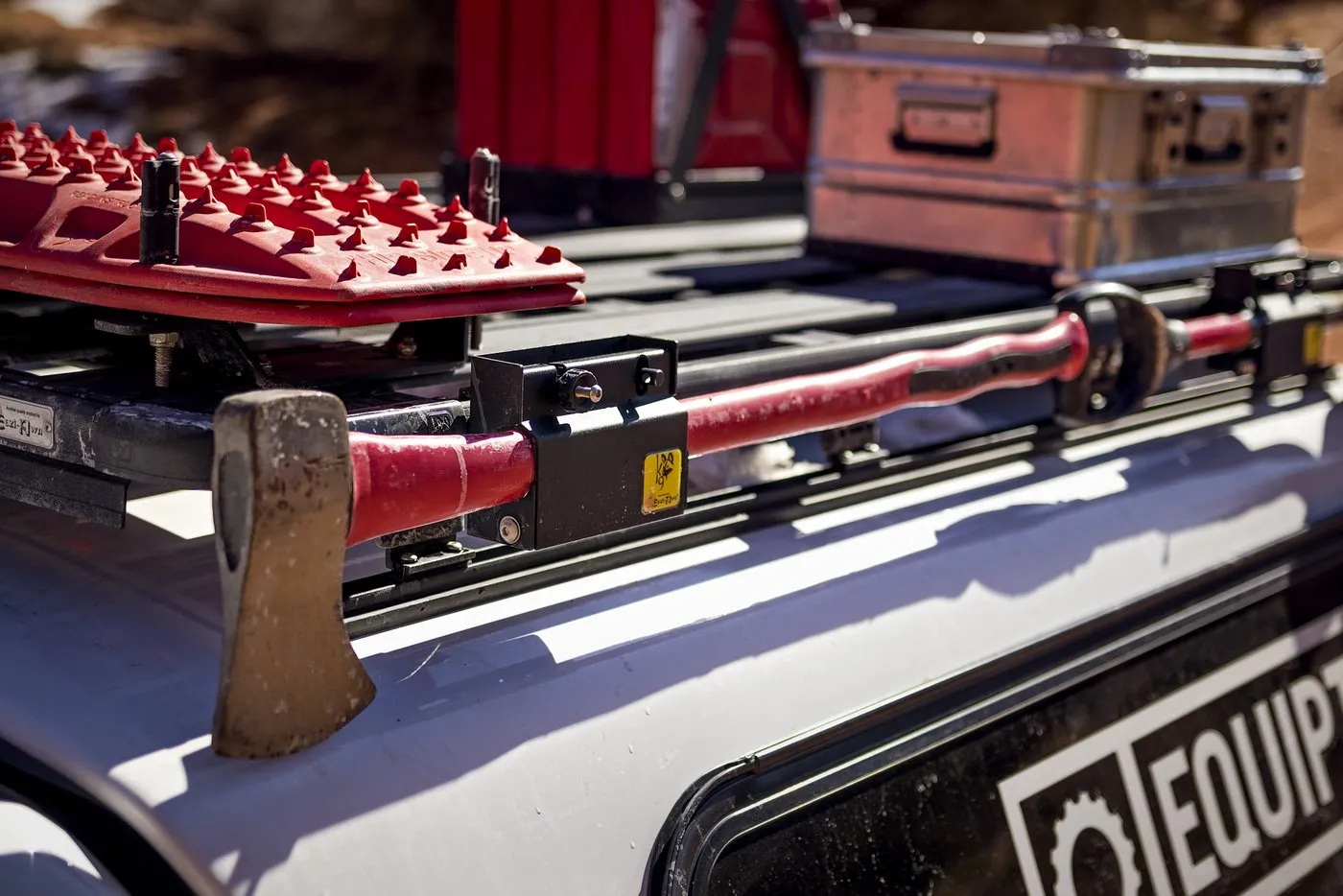

The Eezi-Awn K9 Roof Rack System comes with a complete array of bolt on accessories.  Jerry Can holders, Axe mounts, Shovel mounts, Hi-Lift Mounts, Max Trax Mounts, Awning Mounts, Under Rack Table mounts, and much more.  Take a look at the accessories page to see all our options.

Thule & Yakima Compatible

The K9 Roof Rack is also the only overlanding rack on the market that is easily compatible with your existing Thule or Yakima sports bar mounts for bikes, kayaks, etc. With store-accessible 6mm hardware that attaches to the K9's perimeter, your hobbies won't become obsolete with your "old gear."

K9 Roof Rack Features

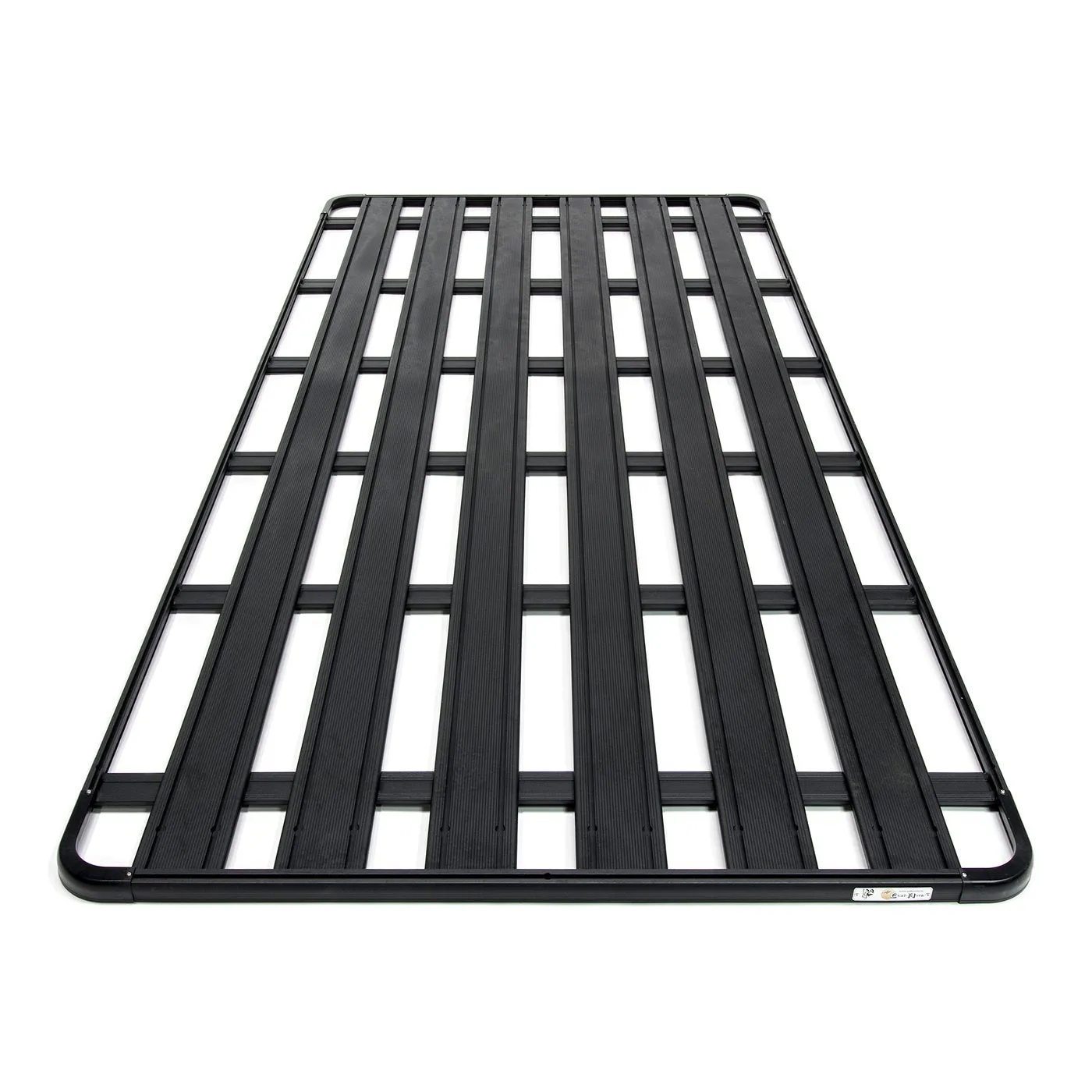

• Fully Welded 1-3/8"H Low-Profile Platform
• Light Weight All Aluminum Construction
• All Components Are Anodized And Powder Coated Matte Black
• 5-1/8" Wide M8 T-Slot Slats, Running Front to Back
• Semi-Elliptical Bottom Cross Braces To Reduce Wind Noise
• M6 T-Slot Around Top Perimeter With Rounded Top Edge
• 5 Lengths and 3 Widths Of Platform Available
• Multiple Mounting Configurations Including Gutterless/Gutter/OEM Rack Mounts
• Full Compliment of K9 Roof Rack Accessories For Top/Bottom/Side Mount
• Infinite Gear Organization Configurations
• Includes All Installation Components & Hardware
